Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Product Categories
HUATAO LOVER LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

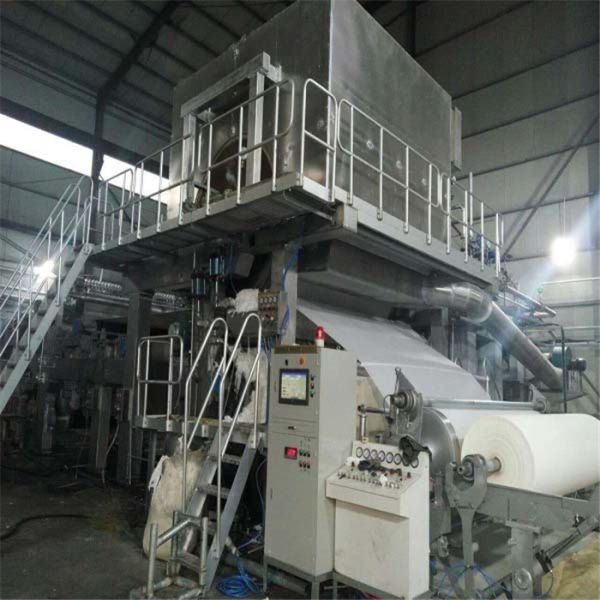

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Brand Name : HUATAO

Model Number : HT003

Certification : SGS,ISO

Place of Origin : China

MOQ : 1

Price : Resonable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 SETS Per 15 Days

Delivery Time : Within 7 Days

Packaging Details : Wooden Boxes

Payment Term : L/C,T/T

Nominal capacity : 8-40T/D

Quality : High

Paper weight : 13-40g/m2

Designed speed : 100-450m/min

Net width of paper : 1880-4600mm

Contact Now

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Application:

Mainly for the production of manufacture paper with pulp 18 - 30 g / ㎡, toilet paper. Paper napkin base paper

Crafts Parameters:

1. Pulp: wood pulp plate, waste paper etc as raw material

  • Feeding pulp concentration : 0.3-0.9‰
  • Beating degrees : 30-38°SR
  • Paper sheet dryness

come out from wire case : 18-20％

Before go through MG cylinder : 36-40％

Come out from MG cylinder : 90-94％

Finish tissue : 90-94％

  • Lateral shrinkage : 8-10％
  • Day running hours: 22 hours/d
  • Papermaking rate : 94％
  • Yield : 95％
  • Touch roll line pressure: 60 KN/m

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Supporting parameter

1. AC voltage : 380V；50Hz

  • Control voltage : 220/24V
  • Water pressure: 0.3Mpa;

Working pressure: 0.2Mpa

  • Compressed air pressure: 0.8Mpa;

Working pressure: 0.5Mpa

  • Steam pressure: 0.6Mpa;

Working pressure:0.3Mpa

  • Vacuum suction tank: 20-40Kpa
  • Water requirement: pure color, remove impurities, PH value 6.8

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Main Technical Parameters:

1. Paper weight: 18-30g/m2

  • Net width of paper :3900mm
  • Designed speed : 230m/min
  • Working speed: 150-200m/min
  • Nominal capacity : 10T/D
  • Track gauge : 4600mm
  • Wrinkling rate : 15-30℅
  • Drive way: Y-type AC motor drive division, section drive
  • Control way:frequency conversion
  • Power:

MG cylinder motor: 95kw

Roll-cylinder motor: 7.5kw

Total:102.5Kw

  • Arrangement: single-layer, the left and right hand arrangement

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Item / PM type 1575 1880 2400 2900 3500 3900
Design Speed (m/min) 250 250 250 250 250 250
Working Speed (m/min) 160-230 160-230 160-230 160-230 160-230 160-230
GSM Range (g/m2) 13-30 13-30 13-30 13-30 13-30 13-30
Capacity 4-6 5-8 7-10 8-12 10-15 11-18
Diameter of Dryer (mm) Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000
Motor (kw) 37-45 45-55 55-75 75-90 90-110 90-110
Gauge(mm) 2400 2800 3400 3900 4500 4800
